CSST GAS TUBING

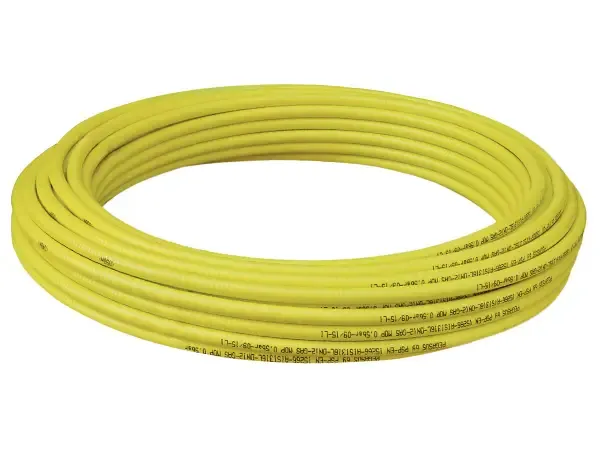

CSST Gas Tubing in AISI 316L
Tubes for transporting combustible gases are made of AISI 316L stainless steel. The formable corrugated CSST system is certified to EN 15266:2007 and consists of tubing, gas fittings and accessories.
AISI 316L CSST gas tubing is used in domestic installations and similar environments, non-domestic civil settings with thermal output greater than 35 kW, gas systems for professional hospitality, and connections to fixed or built-in appliances. These tubes are equipped with a specific protective coating, as required by the standard.
Get in touch to enjoy the benefits of our CSST gas tubing in AISI 316L or request our support. We will offer you quality and safety through our solutions and expertise, available throughout Italy and Europe.
How to Install Corrugated CSST Tubes for Combustible Gases
Our formable corrugated CSST tubing system for combustible gas transport includes various joining systems, such as flaring systems, o-ring systems and the OMNI PRESS press-fit system. Tube installation must follow specific steps.

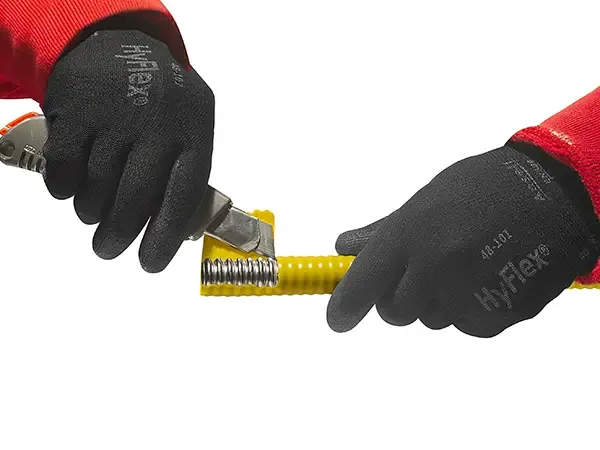

SHEATH CUTTING
Remove the sheathing to allow the nut to be inserted before flaring.
NUT INSERTION
Insert the nut before flaring.
GAUGE POSITIONING
Insert 2 corrugations into the gauge from its flat side.
GAUGE POSITIONING IN THE FLARING TOOL
Insert the gauge into the flaring tool.
FLARING
Hammer until a thin, burr-free flange is obtained.

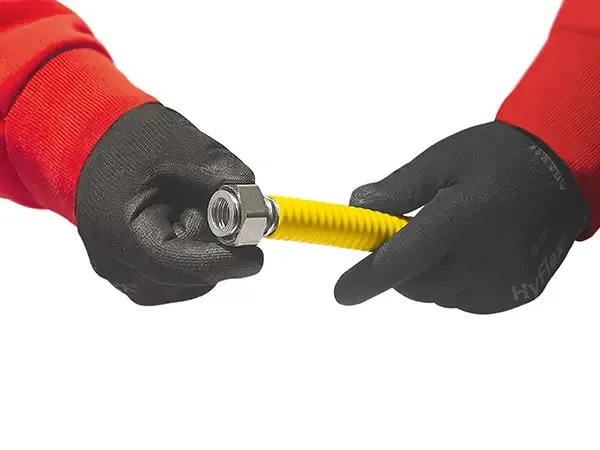

NUT SEALING
Slide the nut up to the flared end and insert the gasket.
