CSST WATER TUBING
CSST Water Tubing: Flexible Technology for Plumbing and Heating Distribution

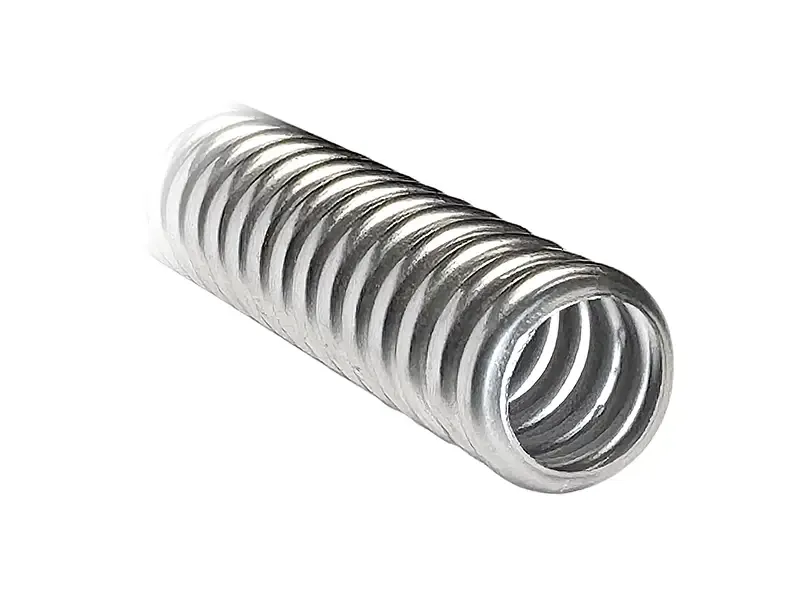

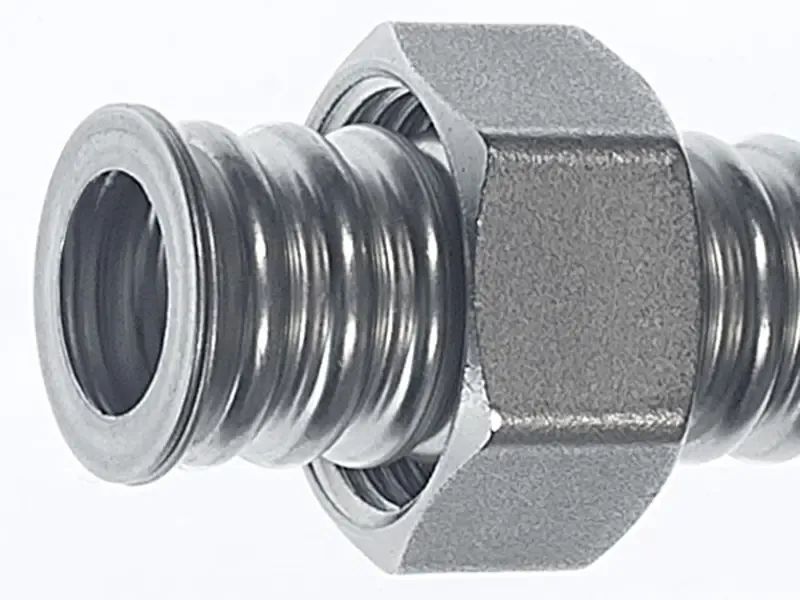

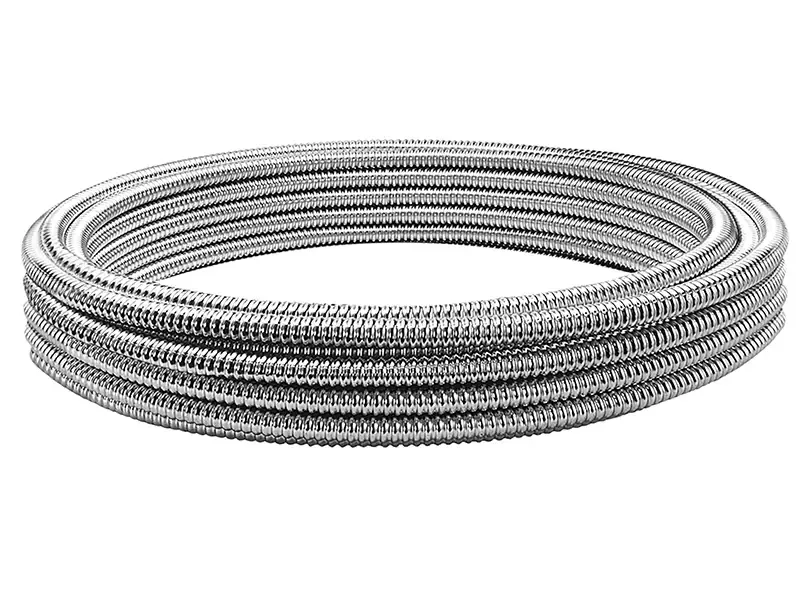

Corrugated stainless–steel tubes are available in AISI 304 and 316L grade stainless steel; they are excellent at maintaining the temperature of the fluid as it flows through them. CSST water tubing can also be coated with plastic and is used in plumbing and heating systems for transporting both hot and cold water.
Following the necessary chemical compatibility checks, CSST tubing is used for fluid transport in industrial systems, for connecting fixed appliances and for human consumption.
We manufacture flexible and formable tubes to meet numerous production needs throughout Italy and Europe. Ask PSP and choose our CSST tubing for your plumbing and heating systems. We will provide effective solutions for all technical and operational requirements.
How to Install Corrugated CSST Tubes for Fluid Transport
CSST water tubing joining systems include flaring fittings, o-ring fittings, and OMNI PRESS press fittings. The production of corrugated stainless-steel tubes requires specific steps to be followed with professionalism and expertise.

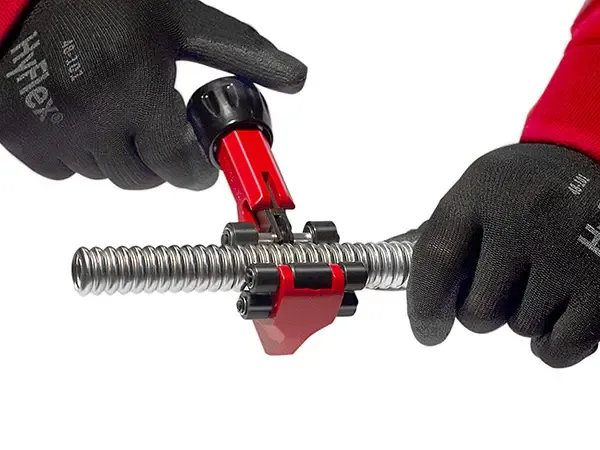

CUTTING OPERATION
Carefully position the smooth-wheel pipe cutter blade between two corrugations and perform the cut.

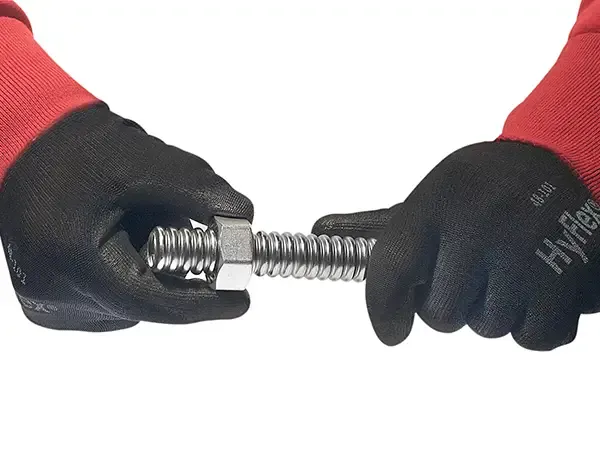

NUT INSERTION
Insert the nut and close the gauge on the tube, from the flat side, compressing two corrugations.
TUBE POSITIONING IN THE GAUGE
Insert 2 corrugations into the gauge from its flat side.

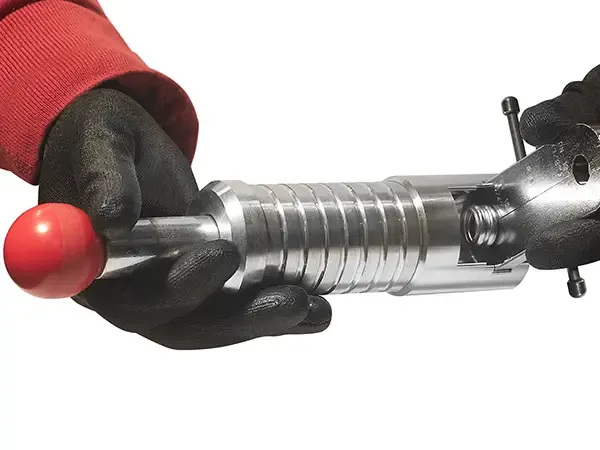

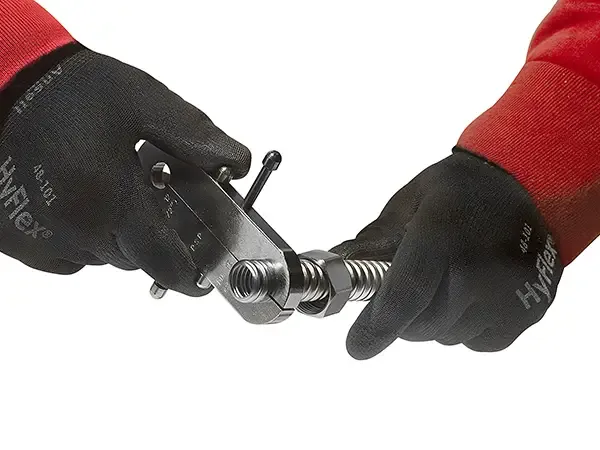

GAUGE POSITIONING IN THE FLARING TOOL
Insert the gauge into the flaring tool.

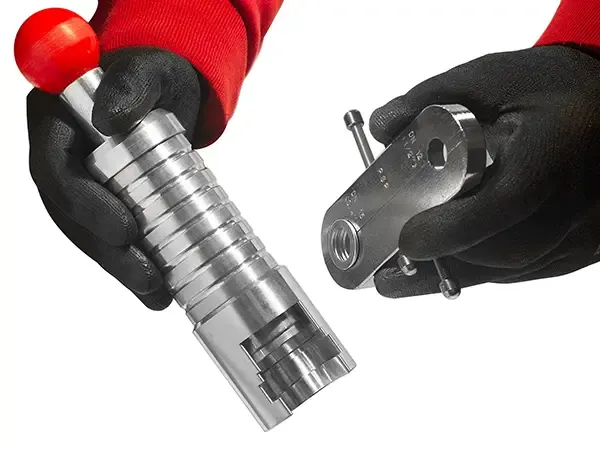

FLARING
Hammer until a thin, burr-free flange is obtained.

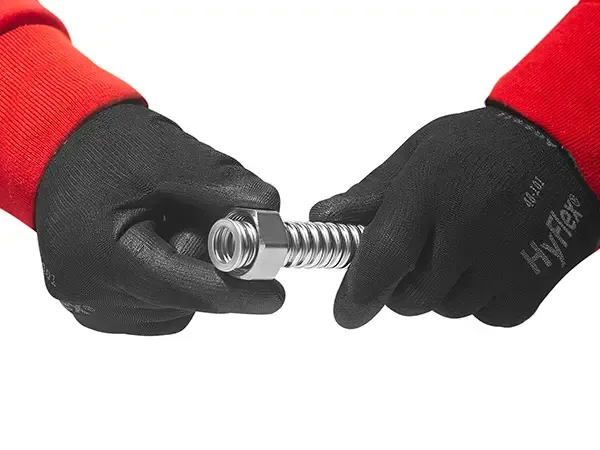

NUT SEALING
Slide the nut up to the flared end and insert the gasket.
CONTACT FORM
PSP supports manufacturers and wholesalers with reliable and safe technical solutions for the plumbing and energy sectors.
Get in touch with us for assistance and to learn more about our products. We guarantee fast shipping across the entire national territory.
